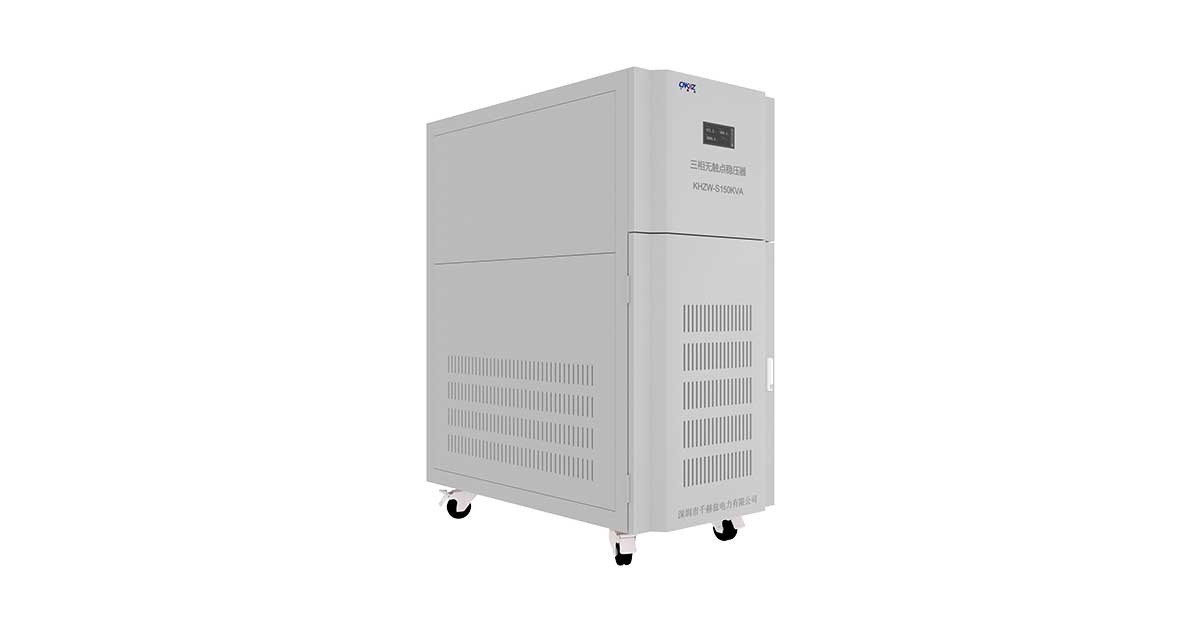

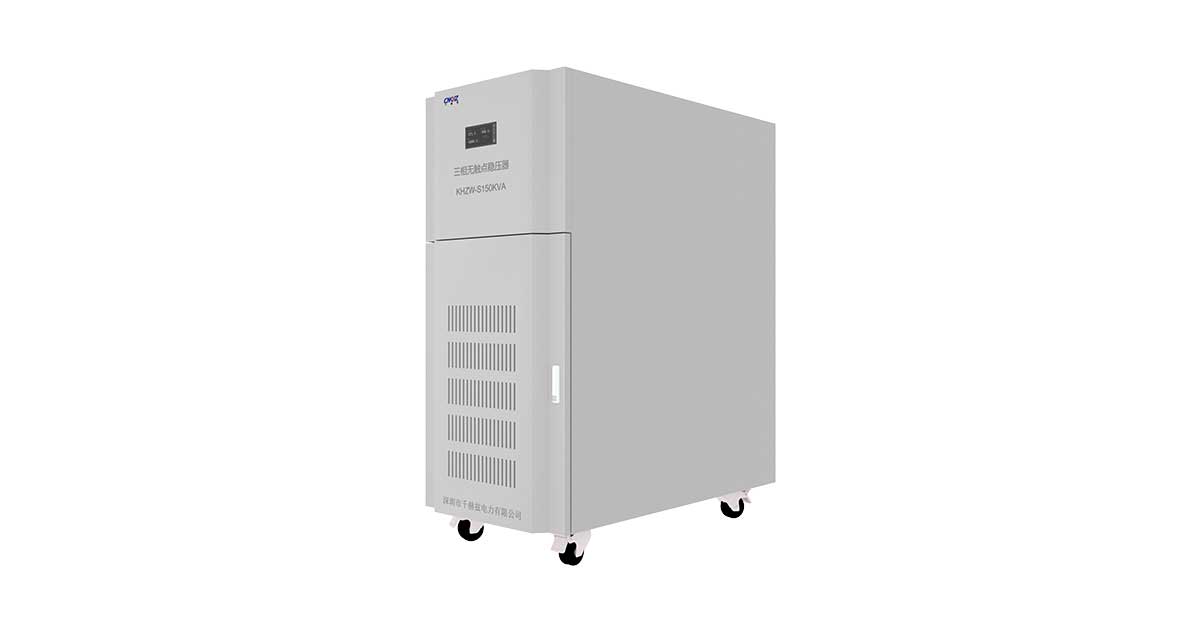

Static voltage regulator（AVR）
Intelligent voltage regulation, precise adjustment, stable and reliable
Utilizing advanced digital technology and static voltage regulation technology, it provides high-precision stable voltage output, features multiple protection functions, and is suitable for precision equipment, industrial automation, and harsh working environments.
Core features
- High-precision voltage regulation: Voltage adjustment speed ≤ 40ms
- Wide input voltage range: ±15% ∼ ±40%
- Three-phase independent adjustment ensures balanced and stable output.
- Anti-interference design: contactless, brushless, maintenance-free
- Multiple protections: overvoltage, undervoltage, overcurrent, overload, short circuit, etc.
- Supports multiple communication interfaces: RS232, RS485, RJ45, dry contact, and optional Wi-Fi.
- Large LCD screen: Dynamically displays voltage, current, and operating status.
- Bypass function Automatically switches to mains power in case of failure to ensure powercontinuity.
Applicable Environment
- Indoor environment free from vibration, dust, and corrosive gases
- Temperature: -15℃ ~ +45℃
- Alitude:< 1000m
- Relative humidity: ≤ 90%
- Frequency: 50/60Hz
- Power supply: 380/400/415V
Product Specifications
| Product Model | Weight (kg) | Dimensions (W*D*H mm) |
|---|---|---|

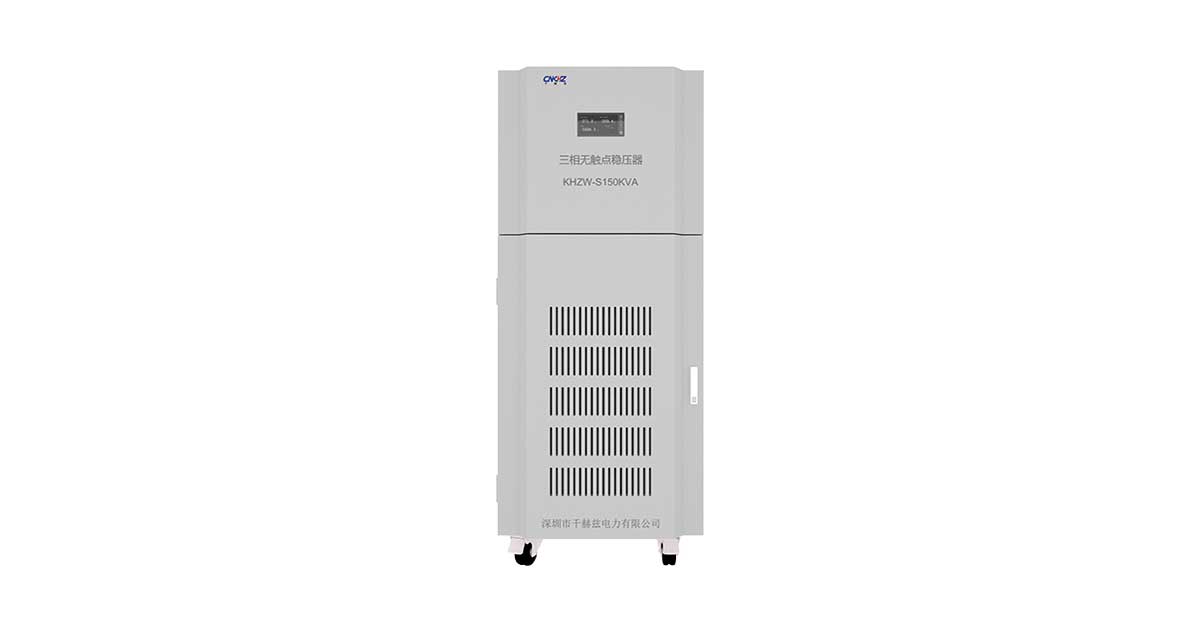

| KHZW-S150KVA | 280 | 410*810*1110 |
* Specifications are subject to change without notice.
Function Overview
- Automatic voltage regulation; voltage can be set within ±7%.
- When the voltage is abnormal, it automatically regulates the voltage to ensure that the output voltage is stable within ±2%.
- Strong short-term overload capacity: 150% can be sustained for 90s, and 200% can be sustained for 20s.
- Automatic fault detection and protection extend equipment lifespan.
- Modular design facilitates maintenance and expansion.
- High efficiency, low noise, fast response, and stable performance
